Change the Appearance of the Dynagraph’s Display

You can change the appearance of a Dynagraph’s display by using the Dynagraph Properties window.

To display the window:

1. Display the Dynagraph in Design mode (see Displaying an Editor in the ClearSCADA Guide to Core Configuration).
2. Right-click on the main display area of the Dynagraph (the area that will contain the traces).
   A context-sensitive menu is displayed.
3. Select the Edit Properties option.

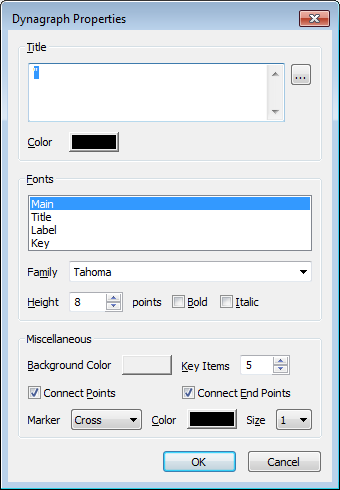

   The Dynagraph Properties window is displayed.

Use the window to:

• Add a Title to the Dynagraph
• Specify the Fonts used on the Dynagraph
• Specify the Marker, Trace and Dynagraph Background Properties.
