Every item in the ClearSCADA database has its own Status display (also referred to as a View window or View dialog). You view an item's Status display by selecting that item's View Status pick action or menu option. The Status display provides information about the status of the selected item, presenting the information in the form of 'status attributes'. For further information about working with Status displays, see Status Displays in the ClearSCADA Guide to ViewX and WebX Clients.

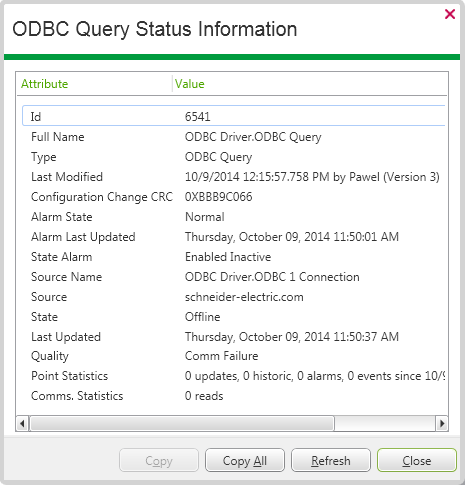

The Status display for each ODBC Query provides information about the present state of that query.
The database items that are associated with this simple driver support a combination of:
- Status attributes that are common to database items on many drivers (see Status Attributes that are Common to Many Drivers in the ClearSCADA Guide to Drivers)
- Status attributes that are driver-specific. The topics in this section provide information about the status attributes that are specific to database items on this particular driver. For more information, see the topics that are listed in the gray footer section at the bottom of this topic. Select the relevant entry to display the topic that you require.
NOTE: For information on the current status of the ODBC Queries that use a particular ODBC Connection, consider using the Display Queries pick action. This will display a List of the ODBC Queries on that ODBC Connection.
