An Oracle database includes the following database table:

Table Name: SCADADATA

ValueId	Value	PrevValue	State
1	10	15	Low
5	21	20	Normal
2	17	19	Low
10	99	90	High

Within ClearSCADA, an ODBC Query is configured to:

• Retrieve the ValueId and Value columns of data from the SCADADATA table
• Sort the retrieved data by ascending ValueId column order.

  To do this, the ODBC Query is configured to use this SQL query request:



  This request returns the following results table to the ClearSCADA ODBC driver:

ValueId	Value
1	10
2	17
5	21
10	99

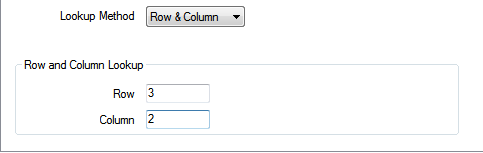

Within ClearSCADA, an ODBC Analog point is configured to return the value from the row ValueId 5. To do this, the point is configured to use a Row & Column Lookup Method with these settings:

This results in the ODBC Analog point having a value of 21.
